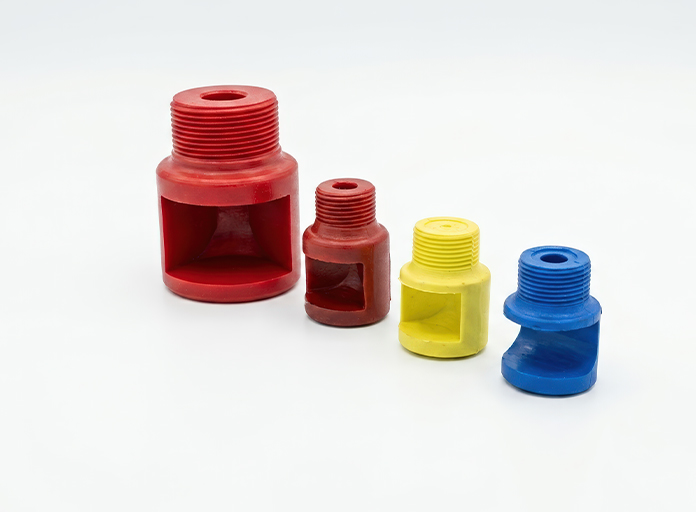

Splash Master Spray Nozzles

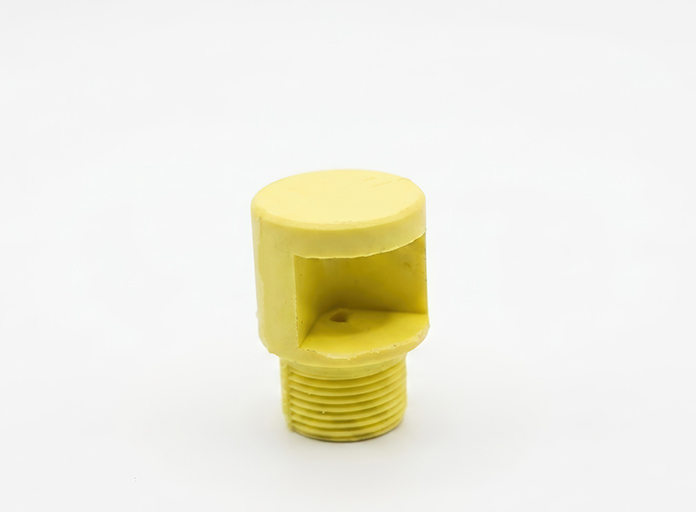

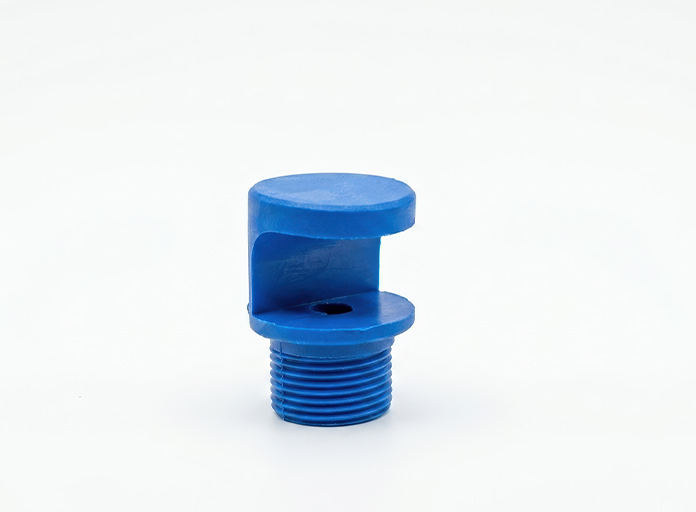

Small Splash Master Spray Nozzles
The Small Splash Master Spray Nozzles are engineered to deliver precise, uniform water distribution for efficient washing, rinsing, and screening applications. Manufactured from high-quality, wear-resistant materials, these nozzles produce consistent spray patterns and resist corrosion and abrasion.
Â
All Small Splash Master Spray Nozzles are supplied with a standard ¾” BSP thread, enabling quick installation and compatibility with most mineral processing water distribution systems.
| Our standard range includes the following orifice sizes and spray angles: | |
|---|---|
| Size | Spray Angle |
| 5 mm | 60° |
| 7 mm | 90° |
| 9 mm | 120° |
| 10 mm | 160° |
| 13 mm | 180° |
Large Splash Master Spray Nozzles
All Large Splash Master Spray Nozzles are supplied with a standard 1½” BSP threaded connection, ensuring easy installation and compatibility with most industrial water distribution systems.
| Our standard range includes the following orifice sizes and spray angles: | |
|---|---|
| Size | Spray Angle |
| 5 mm | 60° |
| 7 mm | 90° |
| 9 mm | 120° |
| 10 mm | 160° |
| 13 mm | 180° |
| 19 mm | 180° |
