Mech-Polyurethane Modular Screening Media

Mech-Polyurethane Modular Screening Media

Boost your productivity and avoid pegging and clogging. We have various low-maintenance and performing polyurethane and rubber panels for various applications. Our Polyurethane experience has now been combined with the introduction of modular wedge wire panels to meet the challenges of higher metallurgical efficiency demanded by modern mineral processing.

The panels are standard 305mm x 305xmm, 305mm x 610mm, or 610mm x 610mm. Apertures and wire profiles are manufactured to suit the requirements of customers.

Aperture sizes Range:

0.5mm to 255mm.

Our Styles

STD

Open Area

23%

EOP

Open Area

28.2%

MAXI

Open Area

33%

DMAX

Open Area

46%

Aperture Shapes

  • Slotted
  • Square
  • VR
  • SVR
  • Continuous Slot
  • Round
  • Solid

Aperture Shapes

  • 31mm THICK
  • 35mm THICK
  • 40mm THICK
  • 45mm THICK
  • 50mm THICK
  • 55mm THICK
  • 60mm THICK
  • 65mm THICK
  • 70mm THICK

Aperture Shapes

  • 300mm x 300mm SQUARE Metric Pitch
  • 305mm x 305mm
  • 305mm x 610mm

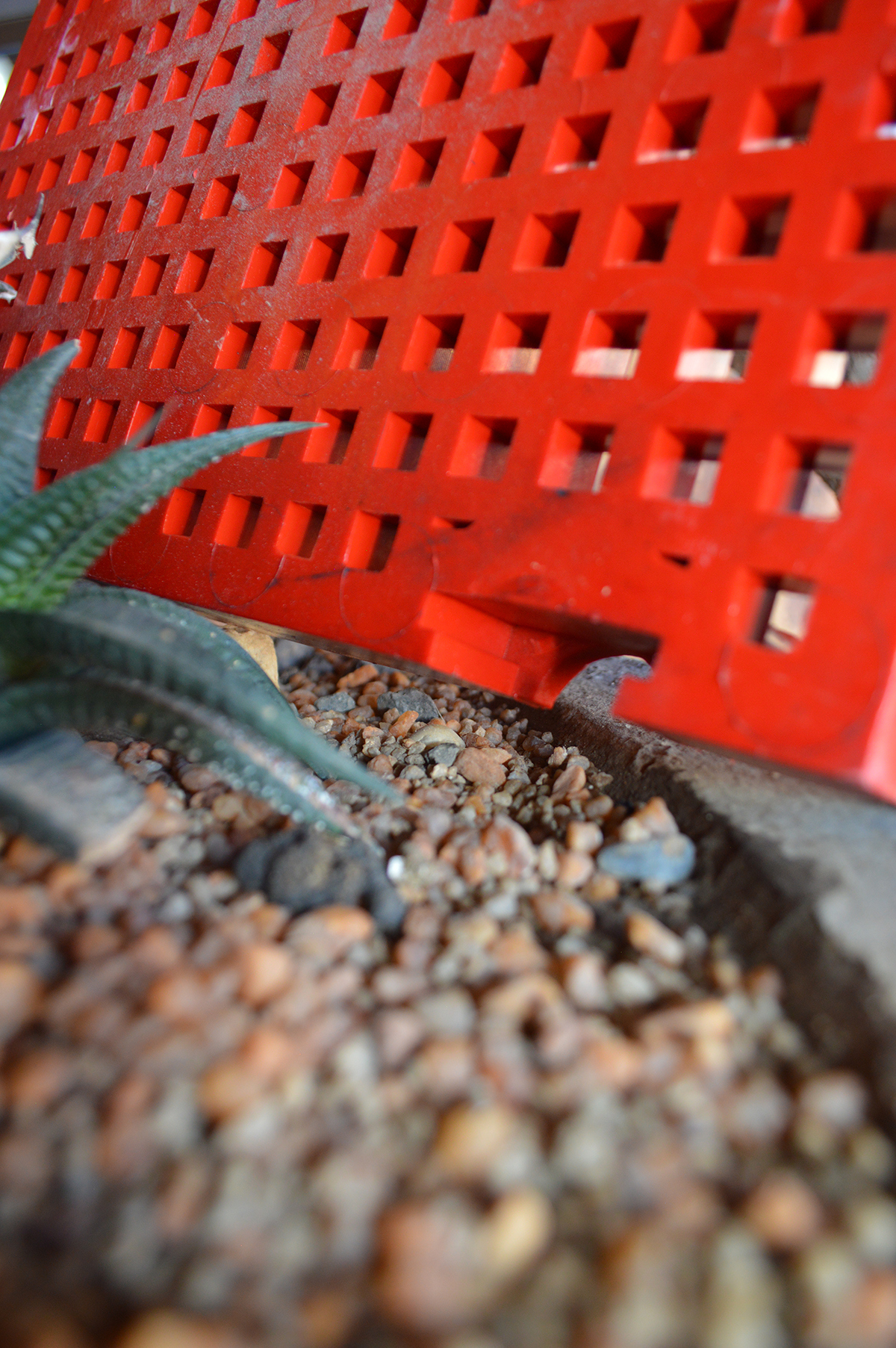

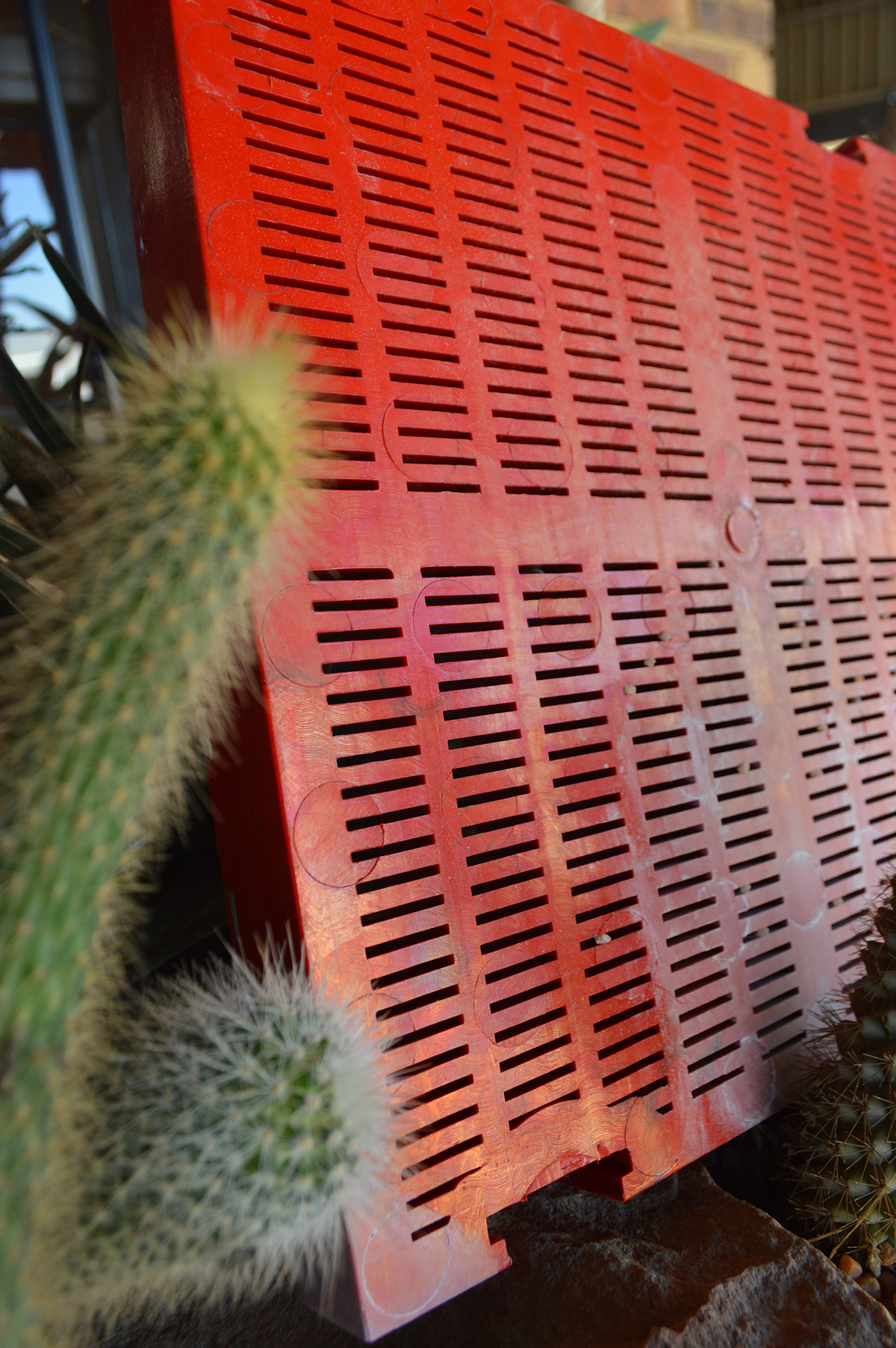

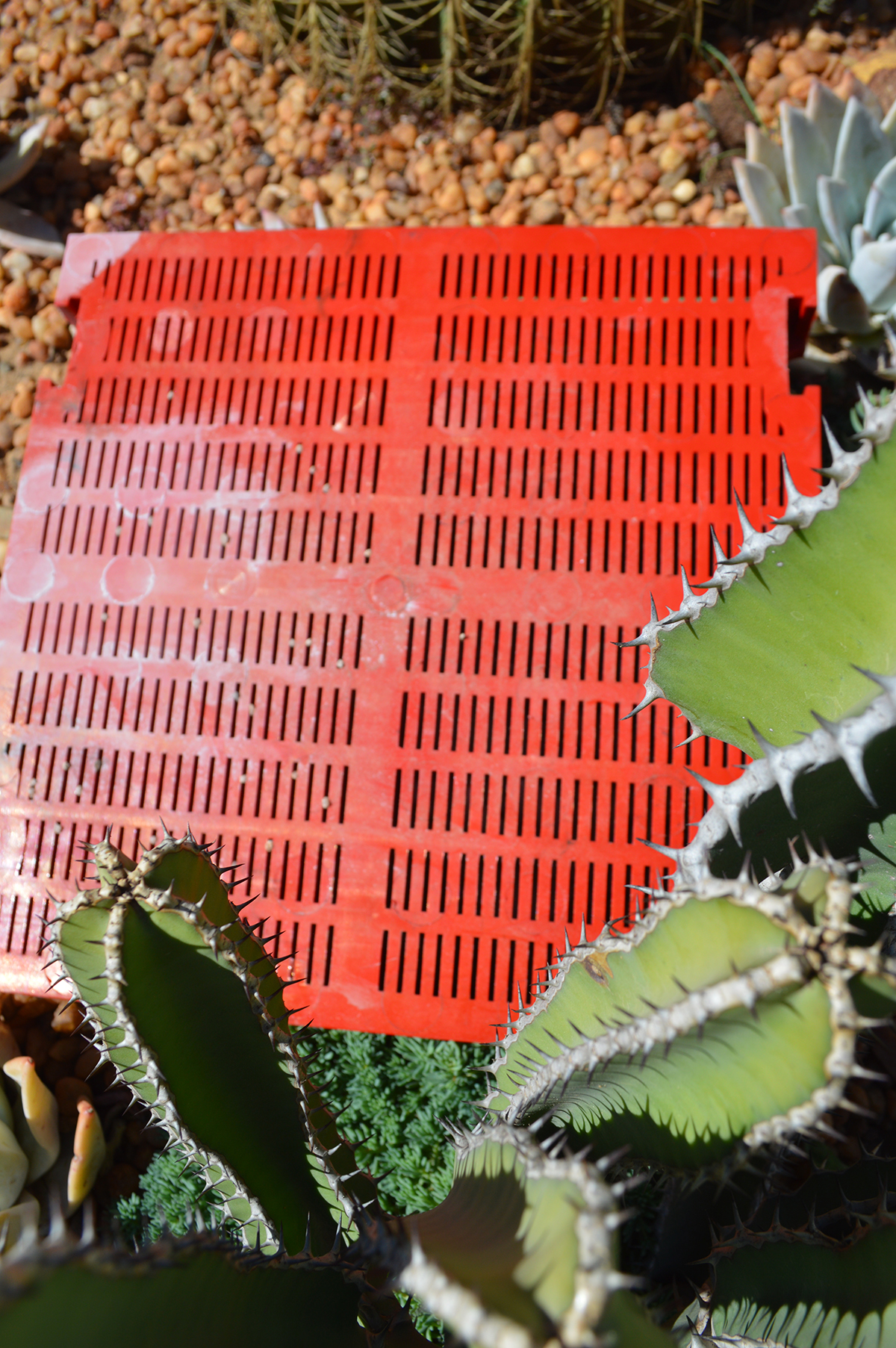

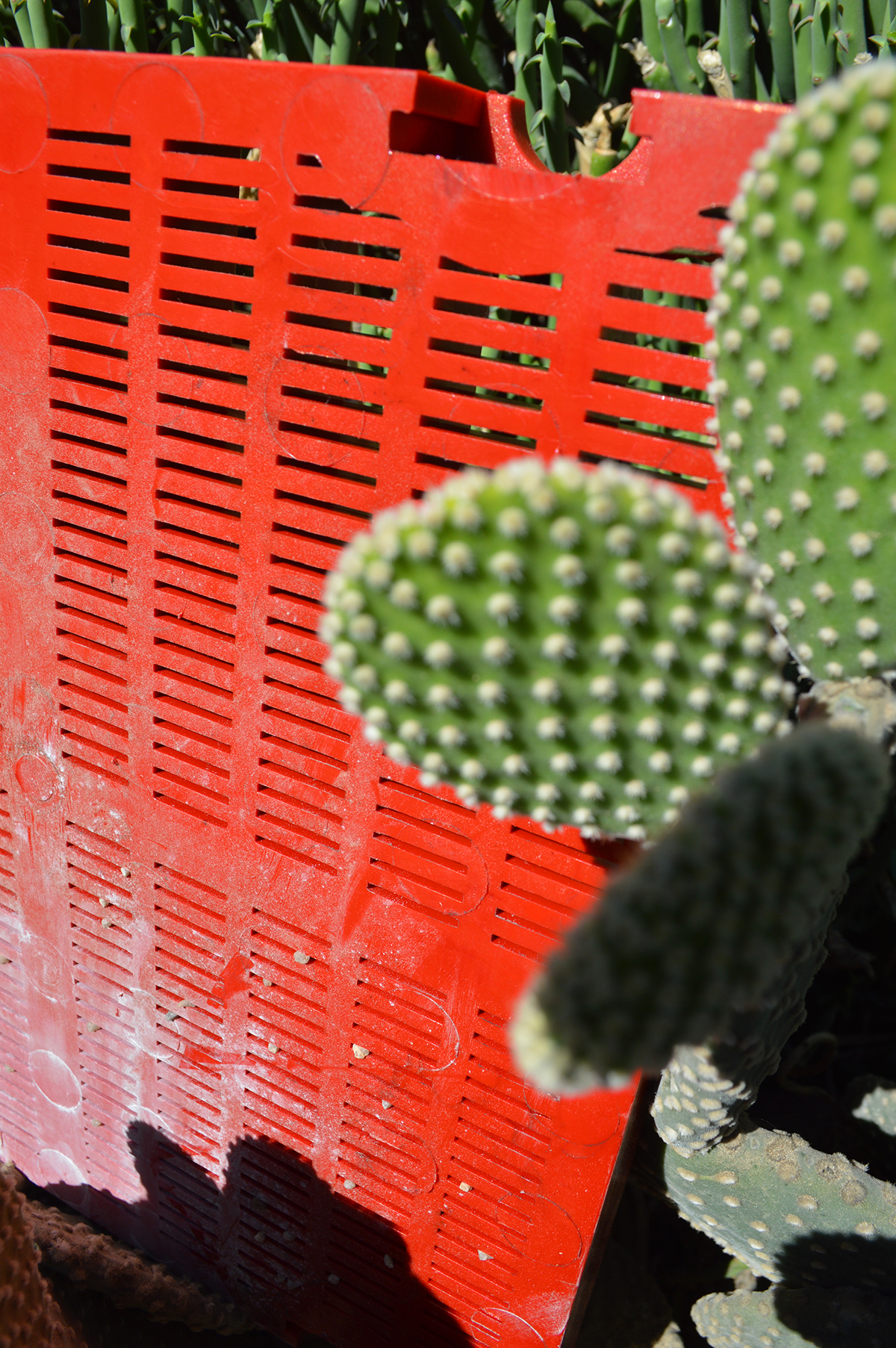

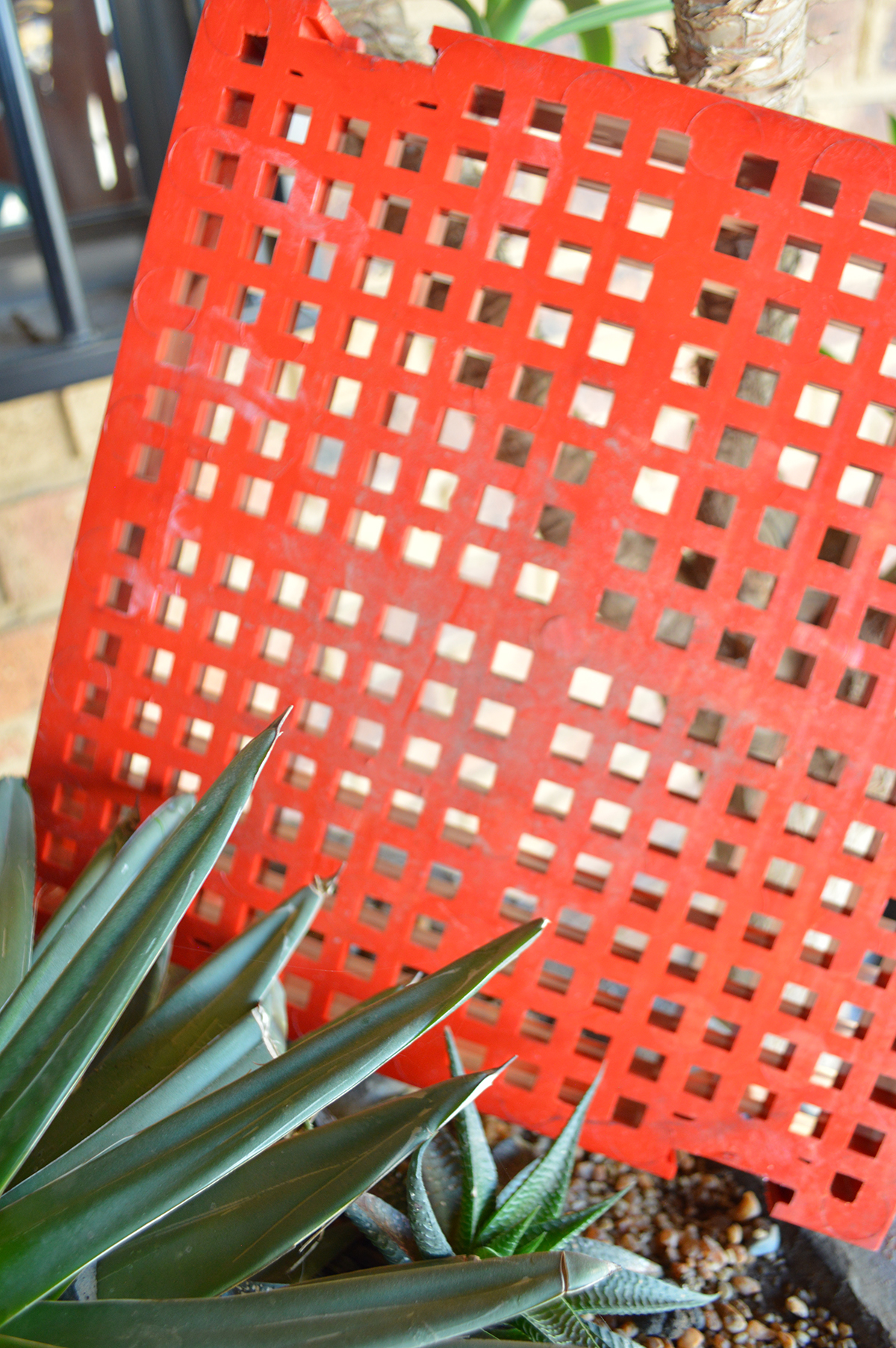

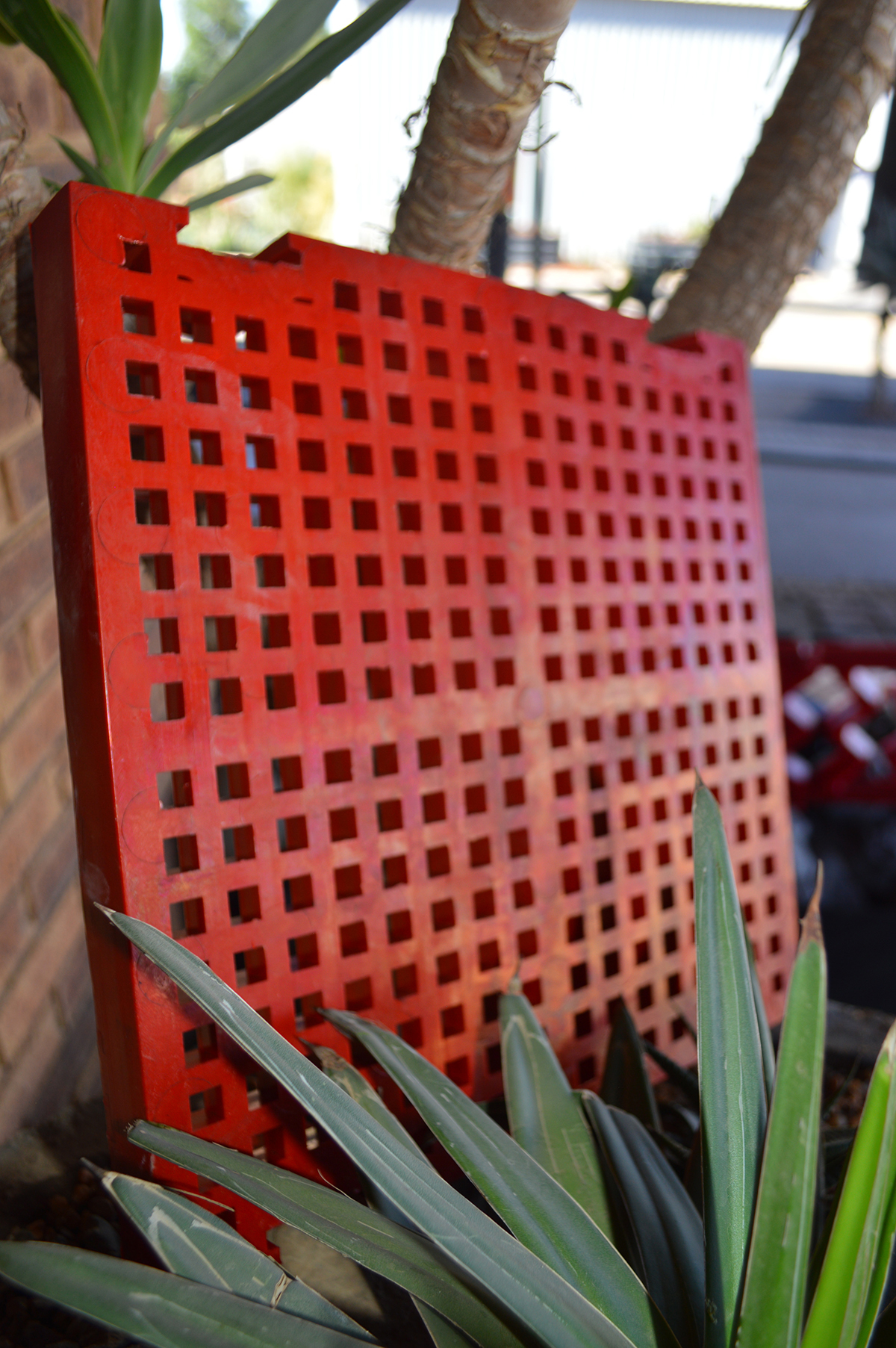

Slots & Squares

Slots & Squares greater than 3mm in width are most common aperture style. Our Aperture size range from 0.5mm to 225mm.


Fine Slots

Our injection moulding technology ensures we provide the best fine aperture panels in the market, manufactured to a repeatable specification.

VR & VXR

Our innovative VR Design helps to minimize or eliminate pegging by producing a flexing action in the solid sections to keep material moving through the screen apertures without getting trapped.



Slotted VR

Our slotted VR offers maximum efficiency through its patented unique aperture design. Derived from the square VR, this panel offers all the non-pegging benefits of a VR with the addition of exceptional fines removal. It is best suited to granular feed types.

Solid Impact

Also known as solid or blank panels, they are typically used at the feed and discharge ends of a screen. Their modular construction and heavy-duty design design makes them well- suited to areas of extreme loading or feed velocity.

Staggered Apertures

For many applications our staggered aperture panels offer increased service life and efficiency by reducing tracking of material. This in turn ensures more cost- effective screening solutions.
